MOQ : 1
Delivery Time : 5~10 work days
Language : Chinese and English
Price : Negotiable
Packaging Details : Professional export wooden box packaging
Model Number : UP-4005
Service Support : OEM ODM
Payment Terms : D/P,T/T,Western Union,paypal
Supply Ability : 30 Unit/month
Brand Name : YOUBI
Model NO. : UP-4005
Certification : CE,ISO
Applications : Leather,Shoes
Place of Origin : CHINA
Power Supply : AC220V 50Hz
The Leather Permeability Tester, also known as leather water vapor transmission tester, is essential laboratory equipment for the footwear and leather industry. It simulates human sweat penetration environment to detect breathability and moisture permeability of shoe upper leather, luggage leather, and coated synthetic materials.
The machine calculates vapor permeability value by weighing method, evaluating wearing comfort of finished shoes and leather products. It is applicable for raw material incoming inspection, product R&D, and finished goods quality audit.
ISO 14268, EN 344, SATRA TM176, GB/T 21295, ASTM E96
| Item | Specification |
|---|---|
| Fan Speed | 1400+/-100 r/min |
| Bottle Diameter | 30+/-1 mm |
| Bottle Speed | 75+/-5 r/min |
| Bottle to Fan Distance | 10+/-5 mm |
| Test Cups | 4 cups (optional 6 cups) |
| Constant Temperature Range | 20℃~50℃ ±0.1℃ |
| Humidity Control Range | 30%~95% RH |
| Weighing Accuracy | 0.0001g high precision |
| Power Supply | AC220V 50/60Hz |
| Net Weight | 42kg |
During the entire business process, we offer consultative selling services:
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended by 2 months to account for sea transportation.
If your machine doesn't work, you can contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Once confirmed, we provide solutions within 24 to 48 hours.
For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment receipt. We accommodate urgent requirements with special arrangements.
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable and begin operation. When necessary, we offer on-site installation assistance.
|
|

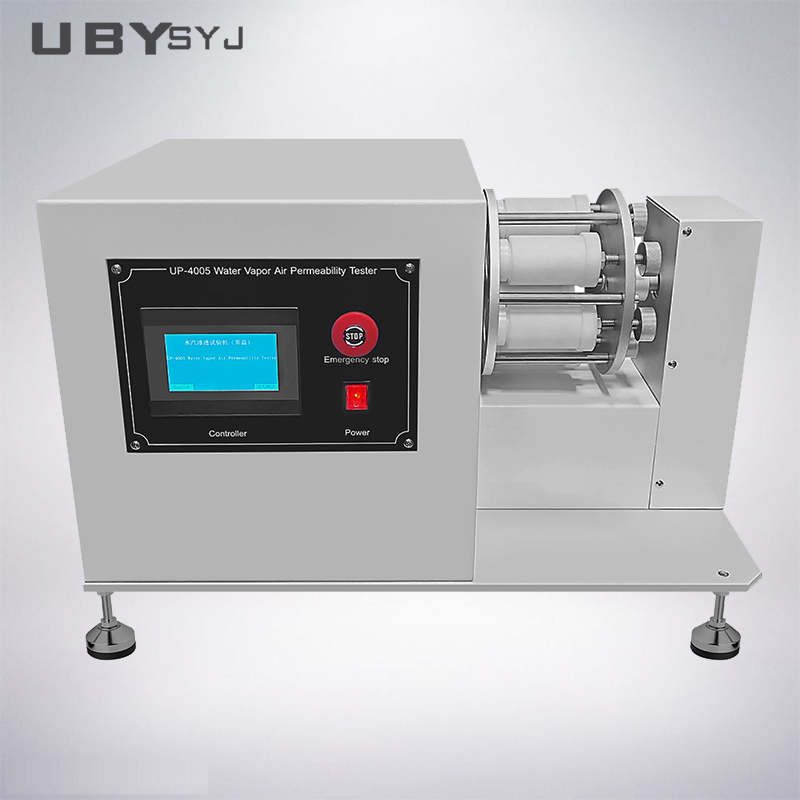

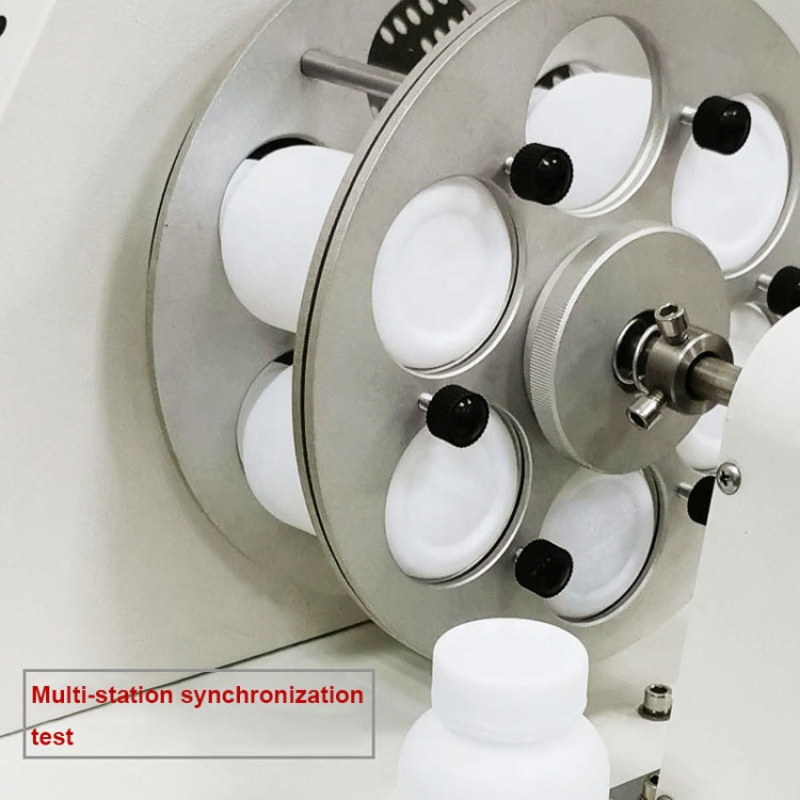

UP-4005 Leather Permeability Tester with Precision Weighing Detection and Constant Humidity & Temperature Control for Lab Testing Equipment Images |
