UP-6125 Accelerated Aging Test Chamber with 100%Rh Humidity Range, ±0.5ºC Temperature Uniformity, and 105ºC~+135ºC Temperature Range for Electronic

  • 1
  • 2
  • 3

MOQ : 1 Unit

Delivery Time : 5-15 work days

Name : Accelerated Aging Test Chamber

Model NO. : UP-6125

Model Number : UP-6125

Temp Uniformity : <±0.5ºC

Payment Terms : T/T,D/P,Western Union,Paypal,

Control Method : Button or LCD Controller, Optional

Price : Negotiable

Humidity Range : 100%Rh

Supply Ability : 30 Unit/month

Time Scale : 0 to 999 Hours Adjustable

Brand Name : YOUBI

Temperature Range : 100ºC~+135ºC

Packaging Details : Professional Export Wooden Box Packaging

Certification : CE,ISO

Control Accuracy : ≤± 0.5ºC

Place of Origin : CHINA

Resolution Accuracy : 0.1ºC

Contact Now

UP-6125 Reliability High Pressure Accelerated Aging Tester For Electronic Industrial Testing
Product Overview

The UP-6125 PCT Test Chamber (Pressure Cooker Test Chamber) is a professional saturated steam accelerated aging test equipment specifically designed for high-pressure saturated damp heat reliability verification. Unlike HAST chambers with adjustable humidity, the PCT operates under 100% fixed saturated humidity, simulating extreme high temperature and pressure steam environments to rapidly trigger internal moisture penetration, material delamination, and sealing failure of electronic products.

This tester features simple operation, strong pressure resistance, and highly repeatable test data, making it widely used for destructive accelerated aging, airtightness, and moisture resistance inspection of high-reliability electronic parts. Fully optimized for global B2B industrial procurement logic, it is compatible with mainstream international test standards.

Applications

The PCT test chamber is suitable for:

  • Testing high humidity demagnetization and material corrosion in semiconductor and IC packaging
  • Magnetic materials industry applications
  • Verifying laminated adhesion and waterproof performance of PCB and packaging materials
  • Testing automotive and aerospace electronics
  • Daily electronic components testing
Technical Specifications
Item Specification
Inner Chamber Volume 36L / 54L / 80L (Optional)
Temperature Range 105℃ ~ 143℃
Temperature Accuracy ±0.1℃
Temperature Uniformity ≤±0.4℃
Humidity Condition 100%RH Fixed Saturated Steam
Working Pressure Range 0.05~0.30MPa (1~3.0kgf/cm²)
Cooling Mode Independent Air Cooling
Inner/Outer Material Inner: SUS316L; Outer: SUS304
Working Voltage 220V/380V, 50/60Hz Optional
Dimension (W*D*H) 720*580*850mm
Net Weight 168kg

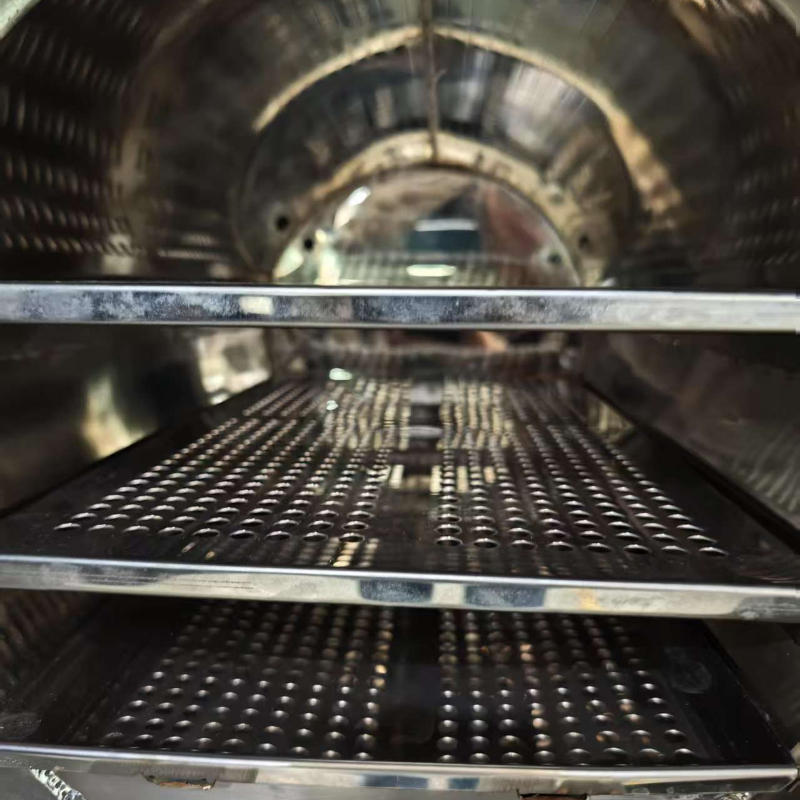

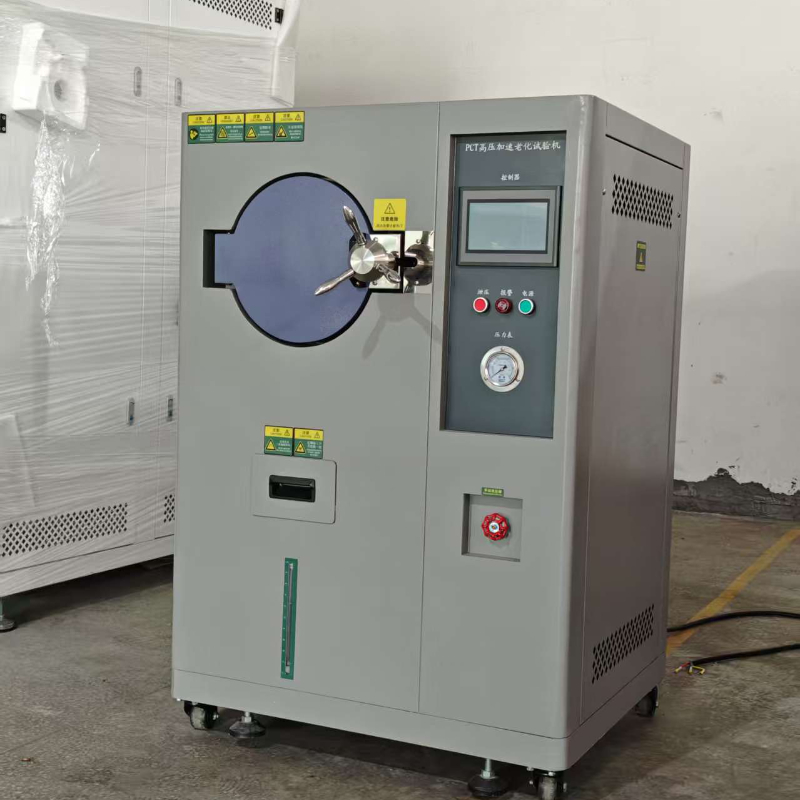

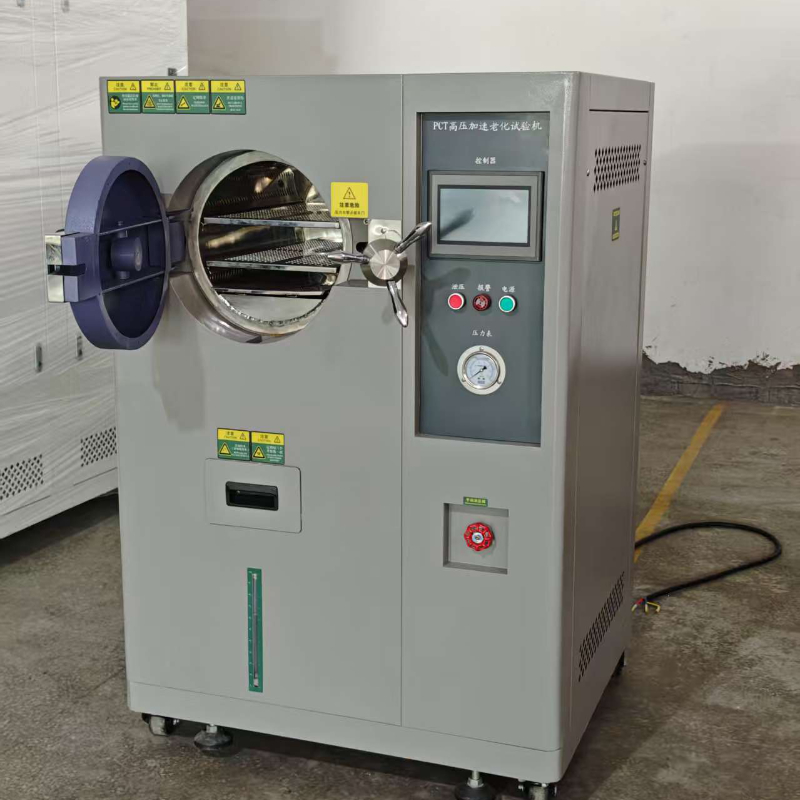

Product Images
UP-6125 Accelerated Aging Test Chamber with 100%Rh Humidity Range, ±0.5ºC Temperature Uniformity, and 105ºC~+135ºC Temperature Range for Electronic UP-6125 Accelerated Aging Test Chamber with 100%Rh Humidity Range, ±0.5ºC Temperature Uniformity, and 105ºC~+135ºC Temperature Range for Electronic UP-6125 Accelerated Aging Test Chamber with 100%Rh Humidity Range, ±0.5ºC Temperature Uniformity, and 105ºC~+135ºC Temperature Range for Electronic
Our Service

During the entire business process, we offer consultative selling services:

Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customers for confirmation. Then quoting the most appropriate price according to customer requirements.

Specifications Customization Process

Creating related drawings to confirm customized requirements with customers. Providing reference photos to show product appearance. Then confirming the final solution and price with the customer.

Production and Delivery Process

Producing machines according to confirmed PO requirements. Providing photos to show the production process. After completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as per customer requirements. Checking and testing all details before arranging packing. Delivering products within confirmed shipping time and informing customers.

Installation and After-Sales Service

Defining installation procedures for field implementation and providing comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months of FREE maintenance. Considering sea transportation, we can extend an additional 2 months for our customers. If your machine doesn't work, you can send us an email or call us - we will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machines in stock, delivery takes 3-7 working days. If there is no stock, normal delivery time is 15-20 working days after payment is received. If you have urgent needs, we will make special arrangements for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can offer not only standard machines but also customized machines according to your requirements. We can also place your logo on the machine, meaning we offer OEM and ODM services.

How can I install and use the machine?

Once you order testing machines from us, we will send you the operation manual or video in English version via email. Most of our machines are shipped as complete units, meaning they are already installed - you just need to connect the power cable and start using them. If necessary, we can also assist you with on-site installation.
